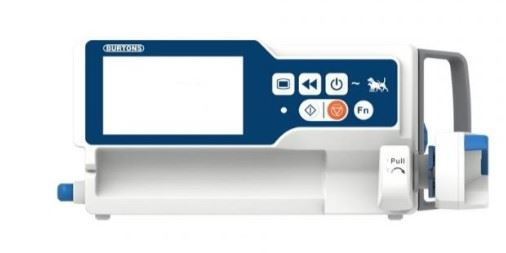

EN-S7P Syringe Driver/Pump

EN-S7P Syringe Driver/Pump

Stock Code: SYRI2002
Manufacturer Part No: BURTONS
Out of Stock
£910.00 (exc VAT) per EACH
£1,092.00 (inc VAT)
Quantity: - +

The EN-S7P driver is perfectly adapted for veterinary use, working on both battery (with up to 12 hours of usage) and mains supply. This multi-function syringe pump brings a whole new array of features and benefits.

This multi-function syringe driver brings a whole new array of features and benefits.

The EN-S7P Syringe Driver is perfectly adapted for veterinary use, working on both battery (with up to 12 hours of usage) and mains supply. This multi-function syringe driver brings a whole new array of features and benefits.

Incredibly easy & efficient to use, it automatically recognises a range of syringe sizes and stores up to 20 editable brands. The 4.3 colour touchscreen makes any editing and parameter settings incredibly easy to do.

Featuring multi-function operation with 3 modes: ml/h (time, rate mode); Body-weight mode and Micro-mode

  • Automatic recognition of syringe sizes (5,10,20,30 and 50/60)
  • Stores up to 20 editable brands
  • 4.3-inch colour touch screen, parameter setting and editing directly on the screen
  • Multi-function operation with 3 modes: ml/h (time, rate mode); Body-weight mode and Micro-mode
  • Flow rates range from 0.01 ml/h to 1,500ml/h with increment of 0.01 ml/h
  • KVO range from 0.01 to 5ml/h, editable
  • Record more than 5000 logs
  • 12 hours battery backup time
  • IP24 waterproof, and stackable design

 Specifications:

  • Screen: 4.3 inches LCD colour touchscreen
  • Syringe types: 2/3ml, 5ml, 10ml, 20ml, 30ml, 50/60ml – Open systems, automatic recognition of syringe brands and sizes after calibration
  • Infusion mode: ml/h (include rate mode, Time mode) Body weight mode
  • Flow rate range: 0.01-2000ml/h (min.increment 0.01ml/h)
  • VTBI: 0-9999ml
  • KVO: 0.01-5ml/h adjustable
  • Bolus rate: 0.1-2000ml/h adjustable
  • Occlusion Level: 4 levels selectable
  • Interface: MINI USB
  • Wireless: WiFi (optional)
  • Alarm Type: VTBI Infused, Syringe empty, Pressure high, Battery empty, Check syringe, KVO finished, VTBI near end, Syringe near empty, Battery near empty, Reminder alarm, No power supply, System error etc.
  • AC Power: 110V-240V, 50/60Hz
  • External DC Power: 12V
  • Battery: Lithium Polymer Battery 11.1V 2600mAh – More than 12 hours operating time @ 5ml/h – Less than 5 hours fully charged.
  • Dimensions: 400mmL x 90mmW x 120mmH
  • Weight: Approx 1.7kg

Please note we are not medically trained and cannot offer training or advice on how to operate these devices, nor can we advise on setting up and using the item.  We cannot accept responsibility or liability for misuse or change of any settings.
